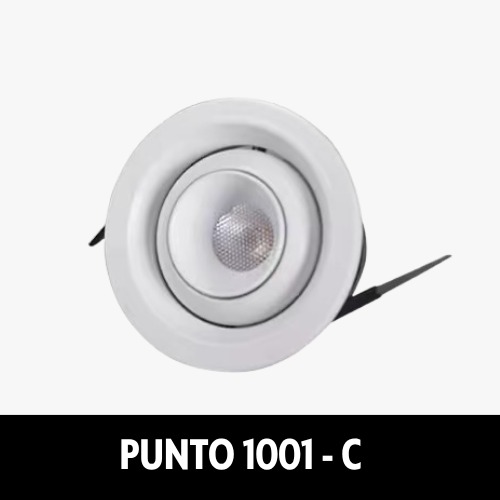

PUNTO C

LED Pin spotlights offer directional lighting with a focused beam, ideal for highlighting architectural structures, artworks, and objects, or creating dramatic accents in any space.
Features
  • Narrow light in a small, recessed niche creates a focused effect.
  • Flexible positioning allows multiple highlighting effects.
  • Used for highlighting artwork, architectural elements, and focal points.
  • Enhances the perception of space and adds drama.
  • Available in different finishes and beam angles.
  • Energy-efficient LED with long service life.
  • High-quality optics for uniform light distribution.
Applications
  • Highlighting artwork
  • Accentuating products
  • Feature walls and signage
  • Museums/galleries
  • Indoor use
  • Focal lighting displays
  • Cabinet space area
Additional Info
Input Voltage: 85-265V
LED: SMD (Bridgelux | Osram)
Beam angle distribution diagram: 10° | 20°
Technical Specifications
Material: Die-cast aluminum frame with PMMA lens diffuser
Optional: Honeycomb
Type: Round recessed mount (adjustable design)
Finishes: Black | White
IP Rating: IP44
Beam Angle: 10° | 20°
CRI: ≥90
Color Temperature: 2700K | 3000K | 4000K | 5000K | 6000K
Life Span: 35,000hrs|50,000hrs
Working Temperature: -15°C to +50°C
Variants (Models Table)
MODEL
POWER
LUMEN
LED
SIZE
CUT-OUT
100103-A
3W
360lm
SMD3030
Ø41.5*H30.6mm
Ø35mm
100103-B
3W
360lm
SMD3030
Ø41.7*H30mm
Ø35mm
100103-C
3W
360lm
SMD3030
Ø49.6*H28.4mm
Ø42mm
