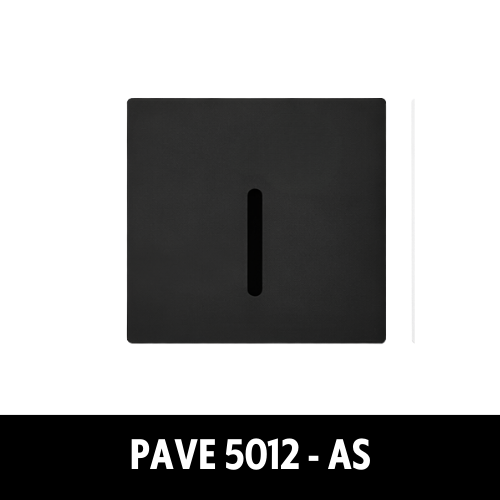

PAVE-AS

Versatile ramp light available in surface and recessed versions, ideal for safe and stylish illumination of ramps, pathways, and walkways.
Features
  • Designed for both functionality and style, this ramp light is available in surface-mounted and recessed versions to suit a variety of architectural needs.
  • Durable and weather-resistant.
  • It delivers consistent, glare-free illumination, making it ideal for both residential and commercial applications.
  • Its low-profile design ensures safe navigation along ramps, walkways, and pathways.
Applications
  • Ramp areas
  • Pathway and walkways
  • Staircase and steps
  • Building entrance and exit
  • Driveways
  • Public spaces
  • Landscape and architectural lighting
Additional Info
Input Voltage: 85-265V
Led: COB (Bridgelux/Cree)
Beam angle distribution diagram: Linear
Technical Specifications
Material: Die-cast aluminum materials with clear glass diffuser
Type: Recessed mounted wall / step light
Finishes: Black | White | Gray
IP Rating: IP65
CRI: ≥90
Beam Angle: Linear
Color Temperature: 2700K | 3000K | 4000K | 5000K | 6000K | RGB
Lifespan: 35,000hrs | 50,000hrs
Variants (Models Table)
MODEL WATT LUMEN LED SIZE CUT-OUT
501203-AS 3W 330lm SMD 90*86*H40 mm 80*80*H50 mm
501203-BS 3W 330lm SMD 90*86*H40 mm 80*80*H50 mm
501203-CS 3W 330lm SMD 90*86*H40 mm 80*80*H50 mm
501203-DS 3W 330lm SMD 90*86*H40 mm 80*80*H50 mm
