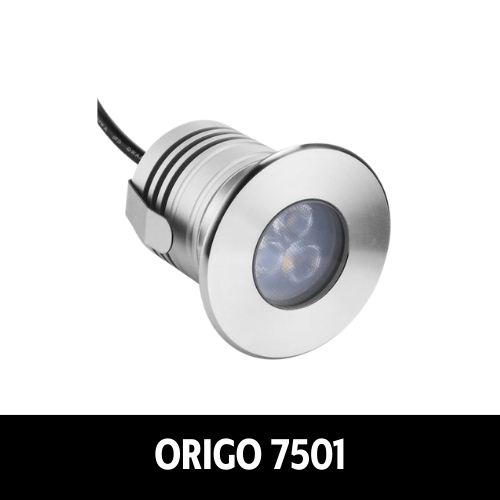

ORIGO

To provide safe, reliable, and visually striking illumination beneath water surfaces, enhancing the aesthetic appeal of pools, fountains, ponds, and water features while ensuring high durability, waterproof performance, and long-term operation in fully submerged environments.
Features
  • Designed for reliable continuous submersion
  • Fully sealed IP68 waterproof structure for use in pools, fountains, and water features
  • It delivers uniform, efficient LED illumination with low energy consumption
  • The corrosion-resistant housing ensures durability against water pressure and chemicals
  • Optimized optics and effective heat dissipation provide stable light output and long service life
Applications
  • Commercials
  • Pools
  • Fountains
  • Residentials
Additional Info

Input voltage: DC12|24V

Led: SMD (Bridgelux/Osram)

Beam angle distribution diagram: 15° | 30° | 45° | 60°

Technical Specifications

Body Material: 316 Pure Stainless steel frame anti-corrosion with tempered glass cover and PMMA lens diffuser

Type: Recessed inground light

Finishes: Stainless Steel

IP Rating: IP68

Beam Angle: 15° | 30° | 45° |60°

CRI: ≥90

Color Temperature: 27000K | 3000K | 4000K | 5000K | 6000K | RGB

Lifespan: 35,000hrs | 50,000hrs

Working Temperature: -15°C~+55°C

Variants (Models Table)
Model Watt Lumen LED Size Cut-Out
750101 1W 110lm SMD Ø48*H44 mm Ø35 mm
750102 2W 220lm SMD Ø48*H44 mm Ø35 mm
750103 3W 330lm SMD Ø48*H44 mm Ø35 mm
