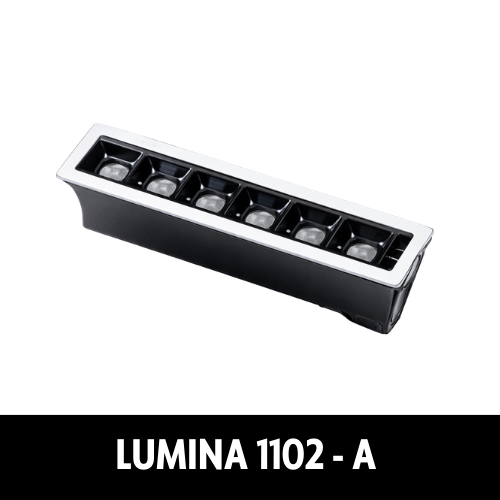

LUMINA A

LED laser blade lights provide discreet, glare-free lighting with precise beam control, seamlessly integrated into modern ceilings for high-end architectural spaces.
Features
  • Deliver ultra-discreet, high-performance lighting with a linear aesthetic.
  • Designed to provide precise, glare-free illumination with superior visual comfort
  • Using ingenious array of micro-optics recessed into the ceiling.
  • Laser blade lights are designed to provide precise, glare-free illumination with superior visual comfort.
  • Ideal for art galleries, boutiques, hotels, and modern residences.
Applications
  • Boutique luxury retail
  • High-end interiors
  • Art galleries, museums
  • Corporate offices
  • Hotels and hospitality spaces
  • Residential spaces
  • Conference and exhibition spaces
  • Indoor use
Additional Info
Input Voltage: 85-265V
Led: SMD (Bridgelux/Osram)
Beam angle distribution diagram: 15° | 30° | 45°
Technical Specifications
Material: Die cast aluminum frame with PMMA lens diffuser with trim (clip type)
Type: Linear recessed laser blade
Finishes: Black | White
IP Rating: IP44
CRI: ≥90
Beam Angle: 15° | 30° | 45°
Color Temperature: 2700K | 3000K | 4000K | 5000K | 6000K
Lifespan: 35,000hrs | 50,000hrs
Variants (Models Table)
MODEL
POWER
LUMEN
LED
SIZE (mm)
CUT-OUT (mm)
110202-A
1*2W
120lm/W
SMD
45*45*48mm
37*37mm
110204-A
2*2W
120lm/W
SMD
75*45*50mm
67*37mm
110206-A
3*2W
120lm/W
SMD
94*45*40mm
86*35mm
110210-A
5*2W
120lm/W
SMD
147*45*50mm
139*37mm
110212-A
6*2W
120lm/W
SMD
173*45*40mm
162*35mm
110220-A
10*2W
120lm/W
SMD
279*45*50mm
272*37mm
110224-A
12*2W
120lm/W
SMD
332*45*40mm
272*37mm
110230-A
15*2W
120lm/W
SMD
411*45*50mm
403*37mm
