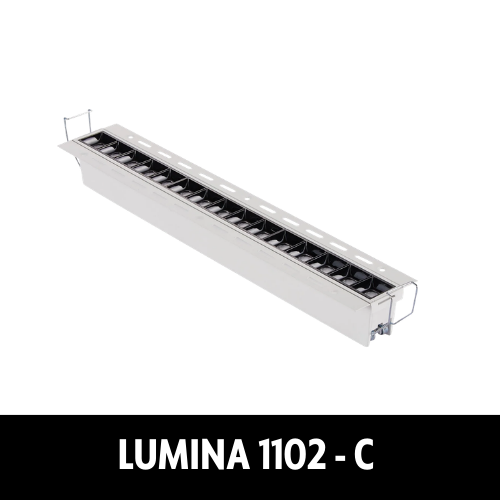

LUMINA C

LED laser blade lights provide discreet, glare-free lighting with precise beam control, seamlessly integrated into modern ceilings for high-end architectural spaces.
Features
  • Deliver ultra-discreet, high-performance lighting with a minimalist aesthetic, using a linear array of micro-optics recessed into the ceiling.
  • Laser blade lights are engineered to provide precise, glare-free illumination with superior visual comfort.
  • Ideal for premium architectural spaces such as galleries, boutiques, hotels, and modern residences.
Applications
  • Boutique luxury retail
  • High-end interiors
  • Art galleries, museums
  • Corporate offices
  • Hotels and hospitality spaces
  • Restaurant / Café
  • Showroom and exhibition spaces
  • Indoor use
Additional Info
Input Voltage: 85-265V
Led: SMD (Bridgelux/Osram)
Beam angle distribution diagram: 15° | 30° | 45°



Technical Specifications
Material: Die cast aluminum frame with PMMA lens diffuser Trim-less Frame
Type: Trim-less linear recessed laser blade
Finishes: Black | White
IP Rating: IP44
Beam Angle: 15° | 30° | 45°
Color Temperature: 2700K | 3000K | 4000K | 5000K | 6000K
Lifespan: 35,000hrs | 50,000hrs
Variants (Models Table)
MODEL
POWER
LUMEN
LED
SIZE (mm)
CUT-OUT (mm)
110202-C
1*2W
120lm/W
SMD
41*72*49mm
42*41mm
110204-C
2*2W
120lm/W
SMD
71*72*49mm
72*41mm
110210-C
5*2W
120lm/W
SMD
143*72*49mm
144*41mm
110220-C
10*2W
120lm/W
SMD
276*72*49mm
277*41mm
110230-C
15*2W
120lm/W
SMD
408*72*49mm
410*41mm
