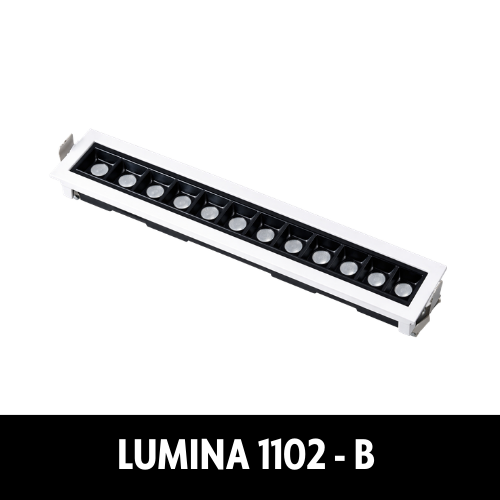

LUMINA B

LED laser blade lights provide discreet, glare-free lighting with precise beam control, seamlessly integrated into modern ceilings for high-end architectural spaces.
Features
  • Deliver ultra-discreet, high-performance lighting with a linear aesthetic, using an ingenious array of micro-optics recessed into the ceiling.
  • Laser blade lights are engineered to provide precise, glare-free illumination with superior visual comfort.
  • Ideal for premium architectural spaces, such as galleries, boutiques, hotels, and modern residences.
Applications
  • Boutique luxury retail
  • High-end interiors
  • Art galleries, museums
  • Hotels and hospitality spaces
  • Restaurant / Café
  • Showroom and exhibition spaces
  • Indoor use
Additional Info
Input Voltage: 85-265V
Led: SMD (Bridgelux/Osram)
Beam angle distribution diagram: 15° | 30° | 45°
Technical Specifications
Material: Die cast aluminum frame with PMMA lens diffuser with trim (adjustable type)
Type: Adjustable linear recessed laser blade
Finishes: Black | White
IP Rating: IP44
CRI: ≥90
Beam Angle: 15° | 30° | 45°
Color Temperature: 2700K | 3000K | 4000K | 5000K | 6000K
Lifespan: 35,000hrs | 50,000hrs
Variants (Models Table)
MODEL
POWER
LUMEN
LED
SIZE (mm)
CUT-OUT (mm)
110202-B
1*2W
120lm/W
SMD
59*59*50mm
53*50mm
110204-B
2*2W
120lm/W
SMD
88*59*50mm
82*50mm
110206-B
3*2W
120lm/W
SMD
105*60*50mm
98*50mm
110210-B
5*2W
120lm/W
SMD
158*59*50mm
155*50mm
110212-B
6*2W
120lm/W
SMD
186*60*50mm
180*50mm
110220-B
10*2W
120lm/W
SMD
291*59*50mm
285*50mm
110224-B
12*2W
120lm/W
SMD
344*60*50mm
340*50mm
110230-B
15*2W
120lm/W
SMD
426*59*50mm
420*50mm
