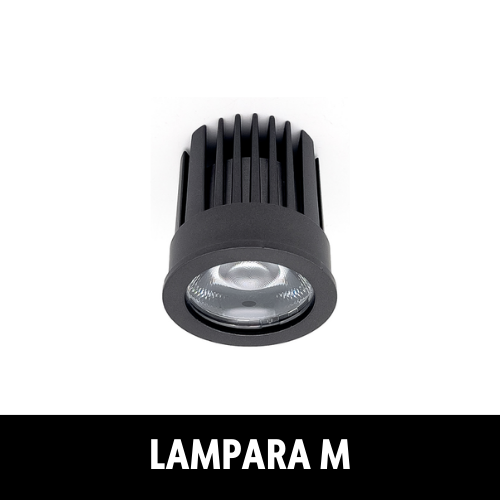

LAMPARA M

LED module lamps are compact, high-efficiency lighting components designed for easy integration into various fixtures and applications. They offer superior brightness, low power consumption, and long lifespan, making them ideal for signage, backlighting, display cases, and architectural lighting.

Features

LED module lamps feature high luminous efficiency, low energy consumption, and exceptional light output.
Offer consistent color distribution and long lifespan.
Lightweight, making installation simple and easy to handle.
They are ideal for both indoor and outdoor lighting applications.

Applications

Residential and Commercial
Accent and Task lighting
Recessed spotlight frames
Retail store and display lighting
Office and School spaces
Showcase and exhibition lighting

Additional Info

Input Voltage: 85-265V

Led: COB (Bridgelux/Cree)

Beam angle distribution diagram: 15° | 24° | 38° | 60°

Technical Specifications

Material: Body case is made of aluminum material with PC base cover and with clear polycarbonate diffuser

Type: Module Lamp | Dependent Bulb | Lamp

Finish: Black

IP Rating: IP44

Beam Angle: 15° | 24° | 38° | 60°

CRI: ≥90

Color Temperature: 2700K | 3000K | 4000K | 5000K | 6000K

Life Span: 35,000hrs | 50,000hrs

Working Temperature: -15°~ C +50° C

Variants (Models Table)

MODEL	WATT	LUMEN	LED	SIZE	BASE
M007	7W	700lm	COB	Ø50*55mm	Ø46mm
M008	8W	800lm	COB	Ø50*55mm	Ø46mm
M009	9W	900lm	COB	Ø50*70mm	Ø46mm
M012	12W	1200lm	COB	Ø50*70mm	Ø46mm
M015	15W	1500lm	COB	Ø50*70mm	Ø63mm
M018	18W	1800lm	COB	Ø50*70mm	Ø63mm
