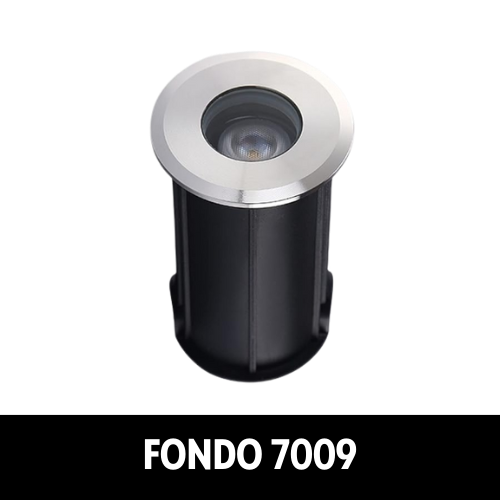

FONDO

This inground fixture features a sleek, durable design with multi-way light output, allowing illumination in more than one direction. Ideal for highlighting pathways, façades, and architectural elements, it provides both functionality and visual impact in outdoor spaces.
Features
  • This inground light is designed with a different beam output, allowing illumination in two or more directions to enhance architectural features, pathways, or landscape elements.
  • Its robust construction ensures durability under heavy loads and harsh outdoor conditions, while the integrated LED technology offers energy efficiency, long lifespan, and consistent performance.
  • The fixture is ideal for creating layered lighting effects, improving both safety and aesthetics in residential or commercial outdoor settings.
Applications
  • Pathway and Walkways
  • Driveways and Parking area
  • Building façade
  • Landscape and Garden lighting
  • Courtyard and Fences
  • Entrances
  • Commercial plaza
  • Poolside
Additional Info
Input Voltage: DC24V
Led: COB (Bridgelux/Osram)
Beam angle distribution diagram: 15° | 24° | 38° | 45° | 60° | 120°
Technical Specifications
Material: Stainless steel frame material with clear tempered glass diffuser
Type: Recessed mounted inground light
Finishes: Matte stainless steel
IP Rating: IP67
CRI: ≥90
Beam Angle: 15° | 25° | 38° | 45° | 60° | 120°
Color Temperature: 2700K | 3000K | 4000K | 5000K | 6000K
Life Span: 35,000hrs | 50,000hrs
Working Temperature: -15°C ~ +55°C
Variants (Models Table)
MODEL
POWER
LUMEN
LED
SIZE
CUT-OUT
700901
1W
120lm
COB
Ø52*H80mm
ø46mm
700902
2W
240lm
COB
Ø52*H80mm
ø46mm
700903
3W
360lm
COB
Ø52*H80mm
ø46mm
700904
4W
480lm
COB
Ø52*H80mm
ø46mm
